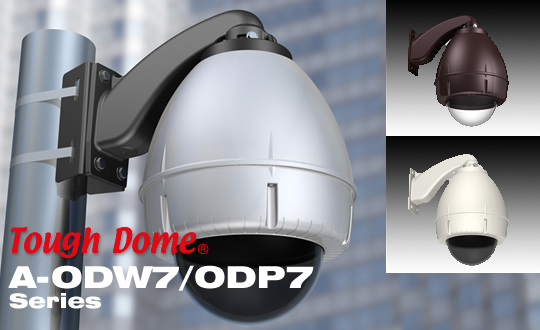

Outdoor Dome Houshing
|
 |
| |
| ■ |
Tough Dome is made of 0.126”(3.2mm) thickness Polycarbonate(UL94 V-0) which is strong against any vandalisim.
|
| |
|
| ■ |
Optional Microphone Unit(Splash Proof) is available.(As regards microphone, please check local law before installation. |
You are requested to abide by the local law and privacy as regards use of microphone.
We are free from any claim for use of microphone.
|
 |
|
| How to select Model # |
| |
| A-ODW7 |
7" W＝Wall Mount W Type |
|
 |
| |
A-ODW7C1 |
(Clear 100VAC Blower&Heater) |
| A-ODW7C2 |
(Clear 24VAC Blower&Heater) |
| A-ODW7T1 |
(Tinted 100VAC Blower&Heater) |
| A-ODW7T2 |
(Tinted 24VAC Blower&Heater) |
| |
|
 |
 |
| A-ODW7(OW) |
A-ODW7(DB) |
| |
|
|
New wall bracket for outdoor dome housing series will be released in Autumn 2008 . ---> |
|
|
| |
| A-ODP7A |
7”(A-GW10 bracket) Pendant Wall Mount "A" Type |
|
 |
| |
A-ODP7C1A |
(Clear 100VAC Blower&Heater) |
| A-ODP7C2A |
(Clear 24VAC Blower&Heater) |
| A-ODP7T1A |
(Tinted 100VAC Blower&Heater) |
| A-ODP7T2A |
(Tinted 24VAC Blower&Heater) |
| |
|
 |
 |
| A-ODP7A(OW) |
A-ODP7A(DB) |
|
|
| |
| A-ODP7B |
7"(A-CM100 bracket)Pendant Ceiling Mount "B" Type |
|
 |
| |
A-ODP7C1B |
(Clear 100VAC Blower&Heater) |
| A-ODP7C2B |
(Clear 24VAC Blower&Heater) |
| A-ODP7T1B |
(Tinted 100VAC Blower&Heater) |
| A-ODP7T2B |
(Tinted 24VAC Blower&Heater) |
| |
|
 |
 |
| A-ODP7B(OW) |
A-ODP7B(DB) |
|
|
| |
| A-ODP7C |
7"(A-CM260 bracket)Pendant Ceiling Mount "C" Type |
|
 |
| |
A-ODP7C1C |
(Clear 100VAC Blower&Heater) |
| A-ODP7C2C |
(Clear 24VAC Blower&Heater) |
| A-ODP7T1C |
(Tinted 100VAC Blower&Heater) |
| A-ODP7T2C |
(Tinted 24VAC Blower&Heater) |
| |
|
 |
 |
| A-ODP7C(OW) |
A-ODP7C(DB) |
|
|
| Note: |
In case of C-Type Bracket(A-CM260), Color of Bracket will be "White" regardless of color of housing body. |
|
|
| You can install the following camera.(Example) |
|
| Canon |
VC-C50iR, VB-C50iR+VB-EX50, VB-C300 |
| Panasonic |
BB-HCM581,580,527,515,511,531,403,481,381,371,331,311,110,100
DG-NS202,DG-NS905,WV-NS320, WV-CS570
BL-C111,C131 |
| Victor |
VN-C625,V685,V686 TK-S576B,S625,S655,S686 |
| Sony |
SNC-RZ25N,30N,50N,RX550N |
| Elmo |
PTC-1000,400,401,200,201, 402CIP |
| Mitsubishi |
CIT-7500, 7510, NC-2750 |
| Tokina(Kenko) |
DMP23-H2, DMP-1223 |
| Hitachi |
HC-300 |
| NEC |
NC-21D |
| Mikami |
PTC-203ST-IP |
| TOA |
N-CC2561, 2571 |
| Ikegami |
PCS-35, IPD-Q38 |
| AXIS |
AXIS-213,214,231D,232D,233D |
| TOSHIBA |
C8210-D |
|
Please confirm with us in advance by telling model number of camera and any other optional items you wish to install.
This is just an example. As regards fitting, please ask us in advance. |
| |
| Product Instructions Manual |
 |
Outdoor Dome Houshing |
|
|
How to use New Wall Bracket A-WB10 |
|
| Specifications |
|
|
| |
| Optional Items |
A-BK3
|
A-CM3 |
Pole Mount Adaptor Bracket.
 |
Corner Mount Bracket
 |
|
|
