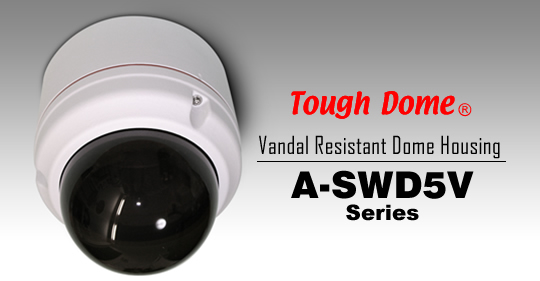

Indoor & Under Canopy Dome Housing


A-SWD5VC	A-SWD5VT
Clear	Tinted

■

Capsule is made of 0.118" (3mm) thickness Polycarbonate and Body is made of Cast Aluminum.

■

Optional Vandal Resistant Screw (7pcs.) & Tool (1unit) Set A-VSM4TL is available.

■

You can use 3/4"NPT Pipe for ceiling mount as well as wiring.

■

IP66

■

Optional 24VAC Blower and 25Watts Heater is available.
(We are using same 24VAC Blower and Heater as A-SWD5 Surfacewedge Housing.)

■

You can install it outdoor by using Optional Wall Bracket A-SWD5VWB.
You can use Same Pole Mount Adaptor A-BK3 series for Wall Bracket A-SWD5VWB.


(Photo: Ceiling Mount by 3/4"NPT Pipe.) Note: 3/4"Pipe is not provided nor selling it.

Specifications

Basic Operating Environment:	INDOOR or UNDERCANOPY. OUTDOOR by using Optional Wall Bracket A-SWD5VWB and 24VAC Blower and Heater.
Operating Temperature:	-4°F～+104° F(-20℃～+40℃）under normal outdoor weather conditions by using Optional Wall Bracket A-SWD5VWB and 24VAC Blower and Heater. We are unable to warrant the products which are installed indoor and exposed to constant hjgh temperature over 104°F(40℃）.
Material:	Capsule(Polylcarbonate) Housing Body(Aluminum)
Weight:	Approx.5lbs(2.3kgs)
Light Loss:	Clear Capsule=Almost Zero% Tinted Capsule=Approx.75%
Paint:	Off White(RAL9002) Powder Coat Finish.
Inner Dia of Cable Entrance:	0.944"(24mm) and 0.748"(19mm) by using provided Plastic 3/4" Bushing.

Optional Items

A-SWD5VWB

Wall Mount Bracket

You can install this housing outdoor by using this wall mount bracket.
You can use Optiona Vandal Resistant Screw and Tool Set A-VS

Dimension Drawing(PDF)→

Material	Steel Insulation=AZOTE(LD-24FR) UL File#E188195
Paint:	OffWhite(RAL9002) Powder Coat Finish.
Weight:	Approx.4.2lbs(1.9kgs)

A-SWD5VHB2

24VAC Blower & 25Watts Heater:

Controlled by thermostat automatically.
(See Insturction Manual of A-SWD5 which is using the same blower and heater as A-SWD5V.

A-BK3

Pole Mount Adaptor

A-BK3S

Pole Mount Adaptor

You can use the same Pole Mount Adaptor A-BK3 series for Wall Bracket A-SWD5VWB.

A-VSM4TL

Vandal Resitant Screw & Tool Set

Consists of 7 pcs. of Vandal Resistant M4 Screws and 1 pc. Of Tool.

A-RCP5VC

Replacement Capsule Clear Capsule

A-RCP5VT

Replacement Capsule Tinted Capsule

You can install the following camera.(Example)

Canon	VB-C60, VB-C300､VB-C50iR, VC-C50iR
Panasonic	DG-NS202A, BB-HCM580, BB-HCM581
Elmo	PTC-400,PTC-401, PTC-402CIP
Mitsubishi	NC-2750
AXIS	AXIS-213
Toshiba	IK-WB21, C8210-D

Please confirm with us in advance by telling model number of camera and any other optional items you wish to install.
This is just an example. As regards fitting, please ask us in advance.
